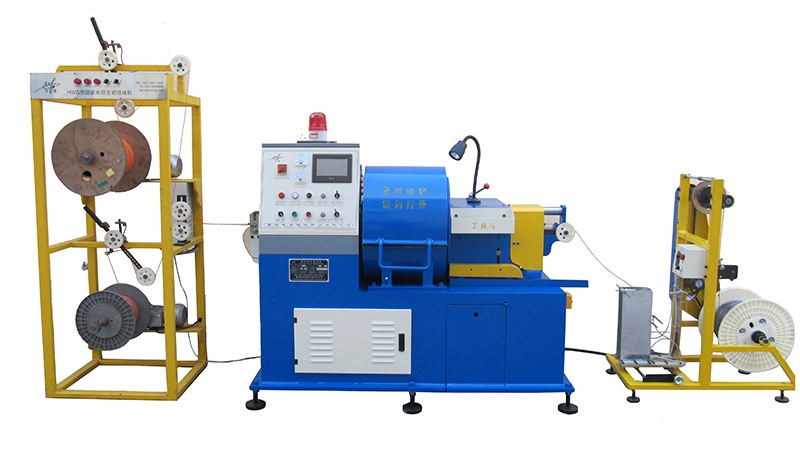

1、概述：

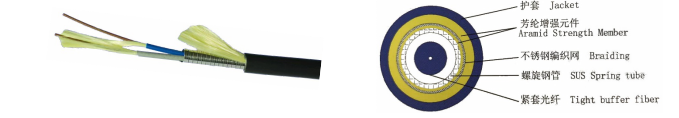

專業生產不銹鋼絲金屬軟管，能自動連續生產φ0.6mm-φ16mm的光纖光纜鎧裝管。生產的鎧裝管用于室外拉遠、機房通訊、配線架中光纜尾纖和跳線、室內豎井級和強制通風級布線、儀器、通信設備互聯 等。

2、設備規格以及功能：

軟管規格：φ0.6mm-φ1.6mm、φ1.0mm-φ6mm、φ7-φ12mm、φ12-φ16mm

速度：主機轉速1060/1800r/50HZ;

電壓：三相四線(380+N)頻率：0-50Hz;功率：3-8KW

外形尺寸：2200x850x1850mm;重量：1300Kg.

功能：數控系統控制伺服電機運轉，效率高使用維護便捷噪音低。

專利編號：2021106621123

1. Overview:

Specializing in the production of stainless steel wire metal hose, automatic continuous production of φ 0.6mm - φ 16mm fiber optic cable armored pipe. The armored pipes are used for outdoor stretching, machine room communication, optical fiber pigtail and jumper in distribution frame, indoor shaft level and forced ventilation level wiring, instrument, communication equipment interconnection, etc.

2. Equipment specifications and functions:

Hose specification: φ 0.6mm - φ 1.6mm, φ 1.0mm - φ 6mm, φ 7 - φ 12mm, φ 12 - φ 16mm;

speed: host speed 1060 / 1800r / 50Hz;

Voltage: three phase four wire (380 + n) frequency: 0-50Hz; power: 3-8kw

Overall dimension: 2200x850x1850mm; Weight: 1300kg

Function: CNC system control servo motor operation, high efficiency, convenient use and maintenance, low noise.
